Flow 5 surface range hood

Let everything flow

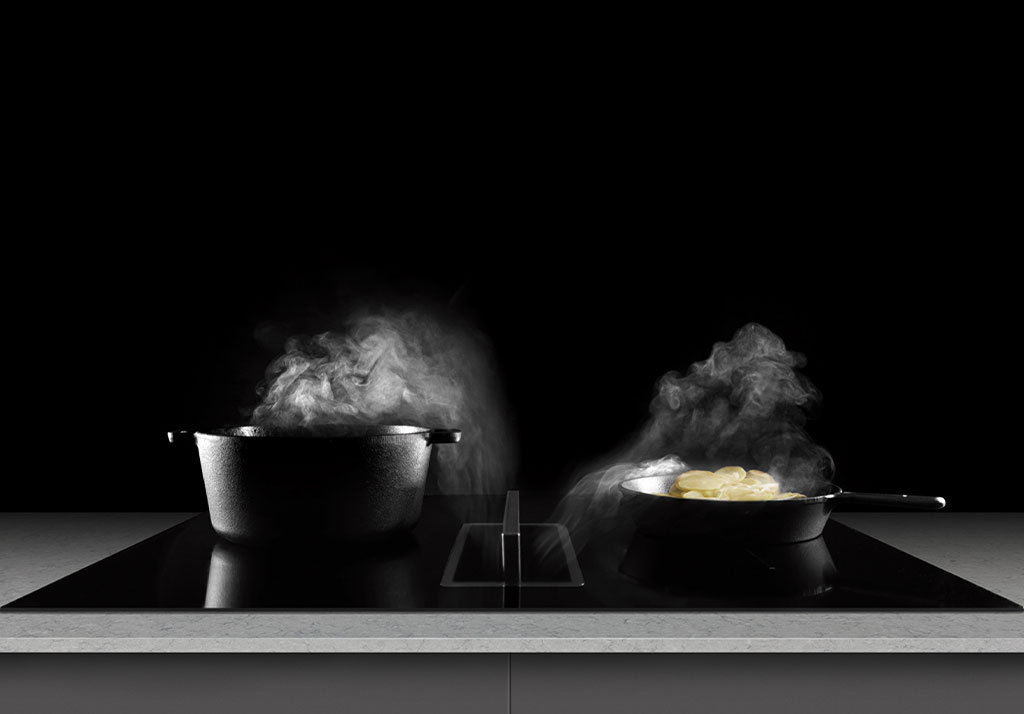

Induction hobs with suction system Integrated Flow 5 thanks to their design, they produce a high-speed air flow that generates a great attraction effect for a kitchen without odours.

The new Flow 5 models are available in 3 and 4 zones, and with their bridge mode they allow cooking by creating large cooking areas. - Watch Video -

Highlights

• Possibility of installation in wall-mounted kitchens.

Technical information

• Motor silence R1300.
• Touch control.
• Deferred stop (Last Time).
• Filter saturation alarm.
• 9 + 1 power levels.
• Installation flush mounted or inset.
• Possibility of installation in wall-mounted kitchens.
• Recirculation through carbon filters included.
• Liquid tray.
Technical information Hob

• Touch control with Slider
• 9 power levels in each zone
• Bridge function (Bridge in right area)
• Power Boost function
• Recall function
• Stop & Go function
• Timer function in each zone.
• Independent timer
• Keep warm function
• Heating function.
• Automatic container detection
• Residual heat indicator
• Security lock

Cooking zones

• Left Ø250 mm. 2100 W. - Power Boost 3000 W. (Flow 53)
• Rear Left 210x190 mm. 2100 W. - Power Boost 3000 W. (Flow 54)
• Front Left 210x190 mm. 2100 W. - Power Boost 3000 W. (Flow 54)
• Rear Right 210x190 mm. 2100 W. - Power Boost 3000 W.
• Front Right 210x190 mm. 2100 W. - Power Boost 3000 W.
• Maximum total power 6700 W.

Models

FLOW 53-780-BK-3-zones
27250
FLOW 54-780-BK-4-zones
27251

Downloads

Technical design

780 - Air Outlet 222 x 90 mm
Built-in dimensions: 760 x 490 mm
• Leave a fix space of 40 mm from the wall to the edge of the hood and 50 mm to the cut out.
